XL44:
44" Width
XL27: 27" Width
Reliable...
Great Value...
Low Maintenance...
Two Year Warranty...
Before we designed this machine, we studied the marketplace and sought ideas regarding features desirable in a large format pouch / mounting laminator. We learned that ease of use, reliability, value, and low maintenance were naturally necessary. We went beyond these requests and added features based on our years of industry experience to simplify and make the lamination process turnkey.
Ledco, Inc., with 27 years of pouch laminator experience, designed the XL series specifically for the novice operator's environment. We simplified the controls and created an improved film path to eliminate many of the operator errors common to pouch laminators. We made the machine so reliable it comes with a 2-year manufacturer's warranty.
Posters, ink-jet images and other large format, printed materials represent a tremendous investment, whether purchased or printed on site. Protecting and mounting these materials with lamination greatly enhances their value and enables them to last for years.
XL Series Standard Features
The XL series offers the control needed to laminate different types of materials using a variety of films with a minimum of operator adjustments. Features that contribute to the quality of lamination and the dependability of the XL pouch laminator include:
- Preset lamination pressure and speed -- to make the laminator easier to use and eliminate many potential sources of problems.

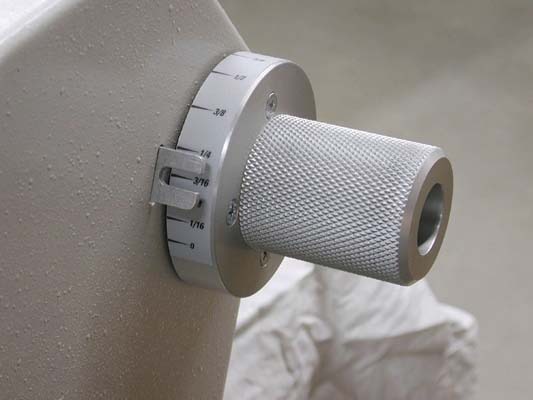

- Adjustable position laminating rollers -- to provide a range of roller openings (from fully closed to 1 1/2", with 10 increments in between), to allow lamination of almost and practical substrate up to 1 1/2" in thickness.
- Enclosed lamination rollers -- to conserve energy, protect the rollers from accidental damage, and to function as a general safeguard.

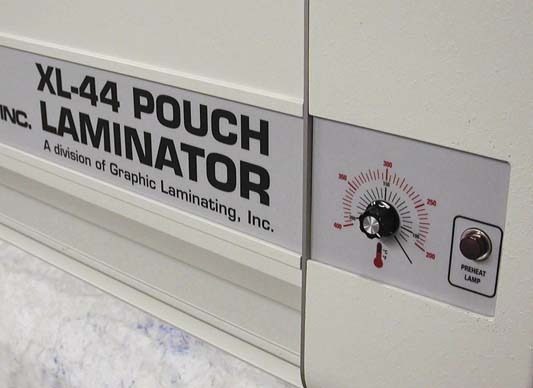

- Adjustable heat controller -- to allow lamination with a wide variety of substrates, laminates, and applications (temperature range from 200 to 400 degrees F).
- Made in the U.S.A. -- for reliable quality, better service, and faster parts availability.
 Roller opening position |
 Temperature setting |
 Mount/laminate |
 Mount & Laminate |
 Mount |
 Media |
Specifications
| Max laminating width | 27 " | 44" |
| Max laminating thickness | 1 1/2 | 1 1/2" |
| Dimensions | 48L 15H 16w | 60L 16H 19w |
| Weight/shipping weight | 90 lbs. | 130/140 lbs. |
| Electrical (Single Phase) |
110V 15 amps |
110V 15
amps |
| Lam. roll diameter | 3 1/8" | 3 1/8" |
| Max substrate thickness | 1 1/2" | 1 1/2" |
| XL- 27 inch 110 volt |
List $3,700.00 |
Your Price $3,047.00 |
| XL- 44 inch 110 Volt |
List $3,800.00 |
Your Price $3,129.00 |
| XL- 44 inch 220 volt |
List $4,300.00 |
Your Price $3,541.00 |
| Stand | $195.00 | |
*Specify if the stand is for XL 27 or
XL 44
Specify 110 Volts or 220 Volts machine when
ordering XL44.
Terms: FOB ship point
Prices subject to change without notice
We accept all major credit cards.
