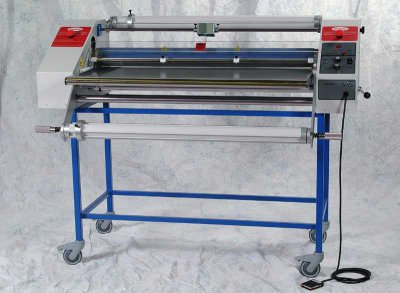

SIGNMASTER Hot Roll Laminator/ Mounter

44" Combination laminator with 2 year Factory Warranty

Designed for Simplicity

The SIGNMASTER is designed to provide quality lamination of a wide range of papers and materials up to ½ inch thick using film up to 10 mil thick. Common applications include:

transfer tape applications

vinyl application to sign blanks

mounting and over laminating using thermal mounting pouches

one sided over lamination using pressure sensitive films

lamination of inkjet prints and other prints produced on printers using other technologies

PRINCIPLES OF OPERATION

The SIGNMASTER thermal roll laminator automates the application of transfer tape, and other pressure-sensitive adhesive (PSA) tapes, films or thermal mounting pouches.

SIGNMASTER conveniently & easily applies transfer tape to weeded vinyl, transfer-taped vinyl to sign blanks, and will apply clear PSA over laminates to finished signs or promotional materials and doubles as a pouch laminator.

SIGNMASTER laminators are ideal for mounting applications and can accept substrates up to ½ inch thick.

Designed for sign and graphics applications, SIGNMASTER machines are used in many settings, including sign shops, photo-finishing labs, reprographics shops and manufacturing plants.

When signage is ruined during the taping or application process, the cost of re-cutting, re-weeding, and reapplying will usually take all the profit out of a job. Whether it’s transfer tape, vinyl, sandblast or acid resist tape, pre-masks, adhesive film, clear polyester, or other pressure-sensitive material, an SIGNMASTER applicator will put it down effortlessly with no bubbles or wrinkles.

Using an SIGNMASTER is much easier than doing the same work by hand. Fast and versatile, it requires little instruction for you to be up and running. Supply roll tension is controlled with knobs. SIGNMASTERS are forgiving. They will apply most materials under a wide range of speeds and pressure or tension settings.

The SIGNMASTER is a heavy-duty commercial laminator designed for the most rigorous and demanding jobs and workloads.

Features that Make a Difference

Features that contribute to the quality of lamination and dependability of the SIGNMASTER include:

The new laminator has several standard features that set it apart from other models.

A release liner take-up with an adjustable clutch, takes up the release liner found on most pressure-sensitive films.
Roller bearings, alloy construction and high quality motors insure a long and trouble-free life for these machines.
A variable speed motor control allows operators to apply different materials to different substrates. A preset 3-function switch allows operation in variable speed mode, a preset film speed mode and a preset pouch speed mode.
The feed tray is non-ferrous, so magnetic materials may be applied.
The supply roll tension knobs are important, because without some supply roll tension, most films and tapes will wrinkle during application.
A reverse drive switch makes it simple to back material out of the laminating rollers or correct material wrap-around.
A foot pedal is a standard feature that frees hands to align and feed work.
A stand is included with the machine.
A safety shield with electronic interlock prevents operation of the machine if the guard and the feed tray are not in place, protecting operators and other employees.
Two safety stop buttons on both sides of the machine will automatically stop the machine when the operator pushes them in.
Correct and even lamination pressure is ensured by rubber rolls that are spring-loaded and preset. The pressure is easy to adjust if required when performing routine maintenance.
Manufactured in the USA means quality, better service and faster parts availability.
Ledco's tradition of 30 plus years of service to industry.

Specifications

Maximum Laminating width:	44 inch
Variable speed	1-25 fpm
Laminating roller diameter	3 inch
Supply roll core size	3 inch
Recommend film thickness	1 mil and up
Maximum laminating thickness	1/2 inch
Dimensions:	64L 34W 51H
Shipping dimensions	71L 43W 54H
Weight/shipping	550/700 lbs
Motor	1/4 HP DC
Electrical:	110 V 1500 watts, 15 amps
Machine PDF
Parts PDF
Gearing PDF

For Prices and Ordering:
We have moved the prices to our new shopping cart shown here.

SIGNMASTER

44 inch 110V

44 inch 220V

Pre Feed Slitter

Pricing includes stand, casters and bottom supply roll

SignMaster 44 Parts

PRS 223 Idler Spring

PRM 218D Motor Control

PRH 130 Heat Control

PRS 017 Heat on/off switch

PRS 054 Emergency stop button

PRR 150 Omron Relay

PRF 147 15 amp fuse

PRF 128 1.5 amp fuse

PRF 127 3 amp fuse

PRS 277 Forward/Reverse switch

PRS 313 Lever micro switch

PRS 290 O/Off Rocker Switch

PRS 048 Foot/Drive Switch

PRS 280 Foot Switch

PRC 115 Foot switch power cord

SPF EHR44 Spare fuse kit

EHR 44 003.4B Rubber gripper band

H380 004 .4 Leather washers

PRC 083.1 #25 Chain Roll

PRC 084 #25 Connecting Link

PRS 258A 25B32 3/4" bore

PRS 258C 25B32 7/8" bore

PRS 255A 25B26 5/8" bore

PRS 249 25B18 1/2" bore
& 3/8" x 5/8" shoulder bolt

PRS 249A.5 25B18 w/ Bushing

EHR44 300.5 Function Switch Assembly

PRS 001 Mercotec Slip Ring

EHR44 002.5 Supply Roll Assembly

EHR44 040.4 Hot Roll

EHR44 044.4 Hot Roll Guide Bushing

EHR44 035.4 Drive Roll

PRS 352 Proximity Switch Magnet

PRS 351 Proximity Switch

PRH 181 110V Heat Cartage

PRH 180 220 V Heat Cartage

PRC 212S Heat Sensor

PRB 087A Ball Bearing

PRL 184 Plastic ThumbScrews 5/16-18 x 1"
