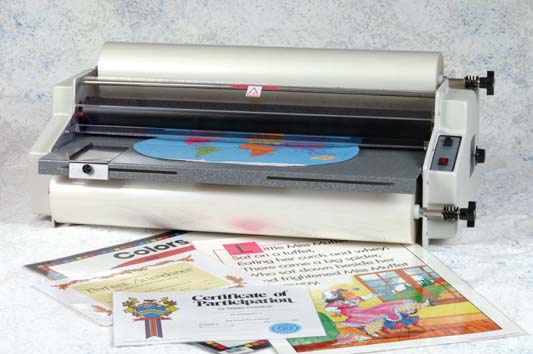

EDUCATOR,
                          25" School Laminator with 2 year Factory Warranty

Designed by Teachers

  • Teachers and media specialists were asked what they wanted to see in a laminator ... and they told us! And that got designed into the Educator!
  • We started with the Graphic III and Premier III machines that so many schools have learned to know and trust for their laminating quality and trouble-free operation. Then we simplified the controls and created an improved film path to eliminate many of the operator errors common to thermal laminators.
  • Posters, dry erase charts, flash cards, bulletin board graphics, games, visuals and teaching aids of all kinds represent a tremendous investment, whether they were purchased, or made by teachers. Protecting and enhancing these educational materials with lamination allows them to last for years instead of being replaced every few weeks or months.
  • The Educator offers the control needed to laminate different types of materials using different films with a minimum of operator adjustments.

Back to Top

Features that Make a Difference

Features that contribute to the quality of lamination and dependability of the Educator include:
  • Preset lamination pressure and speed. Makes the machine easier to use and eliminates many possible sources of problems.
  • Enclosed laminating and pull rollers. Helps you avoid time-consuming jams and wrap-arounds.
  • Forced air cooling. Allows laminating with 3 and 5-mil films, as well as the 1.5 mil film often used by schools. Without a film cooling system, thicker films will warp and ripple because they are still hot and partly melted when they come out of the laminator.
  • Fixed-position lamination rollers. Provides a stable platform for uniform roll pressure which provides the highest quality lamination available in a school laminator.

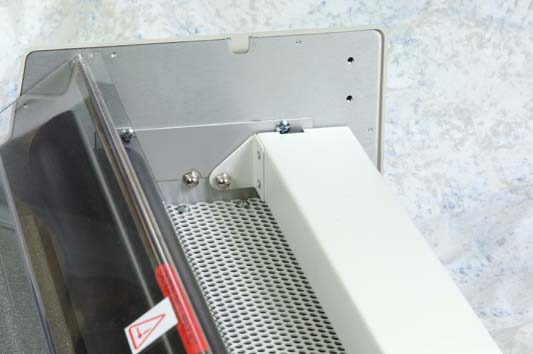

  • Attached safety shield. The safety shield is fixed to the machine and is placed so that the operator will naturally put it in the guard position before laminating. The shield is made of clear polycarbonate so users can see their work and will not be tempted to try to laminate without the shield in its safe position. Click on the picture below.
  • Reverse switch. Can be essential at times to help avoid problems or clear miss feeds.
  • Adjustable heat control. If you have used a kitchen oven, you'll feel comfortable with our heat control dial. It allows you to use films up to 5 mil.

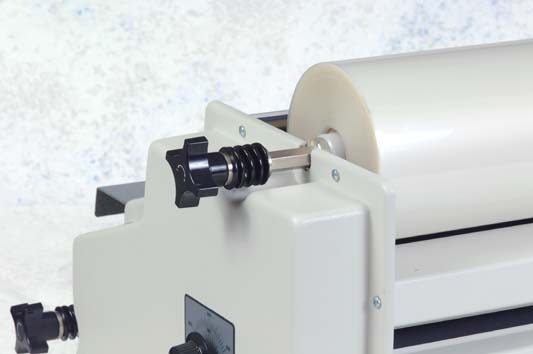

  • Supply roll tension knobs. Gives you the control you need to produce wrinkle-free lamination without complicating your work. Click on the picture below.
  • Separate safety cutter. Provides a safe means of cutting work off the back of the machine and eliminates the usual tear bar which may cut fingers or snag clothing.
  • Slitter option. The Educator is the only school laminator with a safety-designed slitter option to reduce trimming time on same-size pieces, enabling higher volumes of work.
  • Manufactured in the U.S.A. means quality, better service, and faster parts availability.


  • Operators Manual: Click here


  •  Threading Diagram: Click here


  • Parts Listing Parts listing



Back to Top

Preserve and Protect . . .

The Educator is a roll laminator designed and manufactured exclusively for schools. You can preserve and protect:

  • Teaching Aids
  • ID Cards/Badges
  • Art Work
  • Flash Cards
  • Visuals
  • Awards
  • Games
  • Photographs
  • Recipes
  • Memorabilia
  • Book Jackets
  • Place Mats
  • Luggage Tags
  • Licenses
  • Reports
  • Bookmarks
  • Signs
  • Maps
  • Presentations
  • Posters
  • Charts
  • Menus
  • Name Tags
  • Certificates
  • Price Lists
  • Sales Aids
  • POP Displays
  • Instructional Material
  • Safety Warnings
  • Membership Cards
  • News Clippings
  • Public Notices
  • Promotional Items
  • Dry Erase Charts
  • Spec Sheets
  • Flyers

Back to Top

Specifications

  Laminating Width Up to 25"

  Maximum film gauge, per side

 5 mils

  Max. laminating thickness

 1/8"
  Max. film roll diameter 6"
  Max. film capacity
  with 1.5 mil
  with 3 mil
1000 feet
500 feet
  Laminating roll diameter 1 1/4"
  Film core size 1"
  Speed: Fixed 6 feet per minute
  Electrical: 110 V, (220 V optional)
1500 watts,
15 amps
  Dimensions: 32L 11H 16D
  Shipping: Dimensions 36L 18H 16D
  Weight/shipping wt:  83 lbs.
  • Options

    Footage counter. Reset device accurately measures film usage, also available in metric.

    Pre-heater. Allows the roll laminator to be used for dry mounting, pouch laminating, or making transparencies from glossy printed graphics without a copier. also permits the use of rigid back "display mount pouches" and thicker pouches such as 10 mil. A pre-heater will dry mount or laminate much faster than a platen press.

    Slitter assembly. Will trim side scrap from your work with a high degree of precision, provided feeding is aligned and consistent. Includes two cutting heads with blades fully retractable for safety.

    Dust cover. Helps keep the machine clean while not in use, making an inexpensive contribution to good preventative maintenance.

    Right-side feed guide. For those who want greater feed precision.

     For Prices and Ordering:
                     We have moved the prices to our new shopping cart shown here.

    Model Width
    (inches)    		 Voltage
    Educator 25 110
    Educator 25 220
      Stand                Shown here Laminator Workcenter
      Right side feed guide
      Slitter assembly
      Roll feed kit
      Footage Counter
      Machine cover

    For Prices and Ordering:
    We have moved the prices to our new shopping cart shown here.

    Replacement Parts

             When order parts include the serial number with the order.

    Price subject to change without notice

    Part Number

    Description
      0500 096.4   Feed table only
      0500-040.4    Rubber rollers**
      PRC118   Power cord
      PRC 117   Plus socket for power cord
      4500 074.4    Safety shield
      PRC083A   Chain pre assembled
      PRS2455   Motor sprocket ½ bore
      PRS251    Laminating roll sprocket ½”
      PRS249     Pull roll sprocket ½” bore
      (18 tooth)
      PRS247   Pull roll sprocket ½” bore
      (17 tooth)
      PRM229A    Motor
      PRC212   Heat control board
      PRC213   Heat control pot stem
      PRC213K     Heat control knob
      PRF127   3 amp drive fuse
      PRF128   1.5 amp heat fuse
      LC25 002.5   Supply Mandrel Assembly
      PRK170   Film supply knob
      PRC212S   Heat sensor
      LC25 060.4     Heat shoe
      PRH147   Heat cartridge

                 **Replacement laminator roll Part #  500-040.4 Recommended replacement in matching pairs.

    For trimming your prints use a Rotatrim, Neolt or Keencut cutters Click here


    Perfect for Offices, Schools and Libraries
          A high-quality 3 mil film developed specifically for use with light duty and desk-top laminators. "PERFECT" is recommended for schools, libraries, offices, hospitals, etc. This film provides substance, durability and beauty at a reasonable price.
    #12 School Film     Click here for current prices

    Freight: FOB shipping point unless other wise specified.
    Prices and specifications subject to change without notice.
    Revised May, 2009
