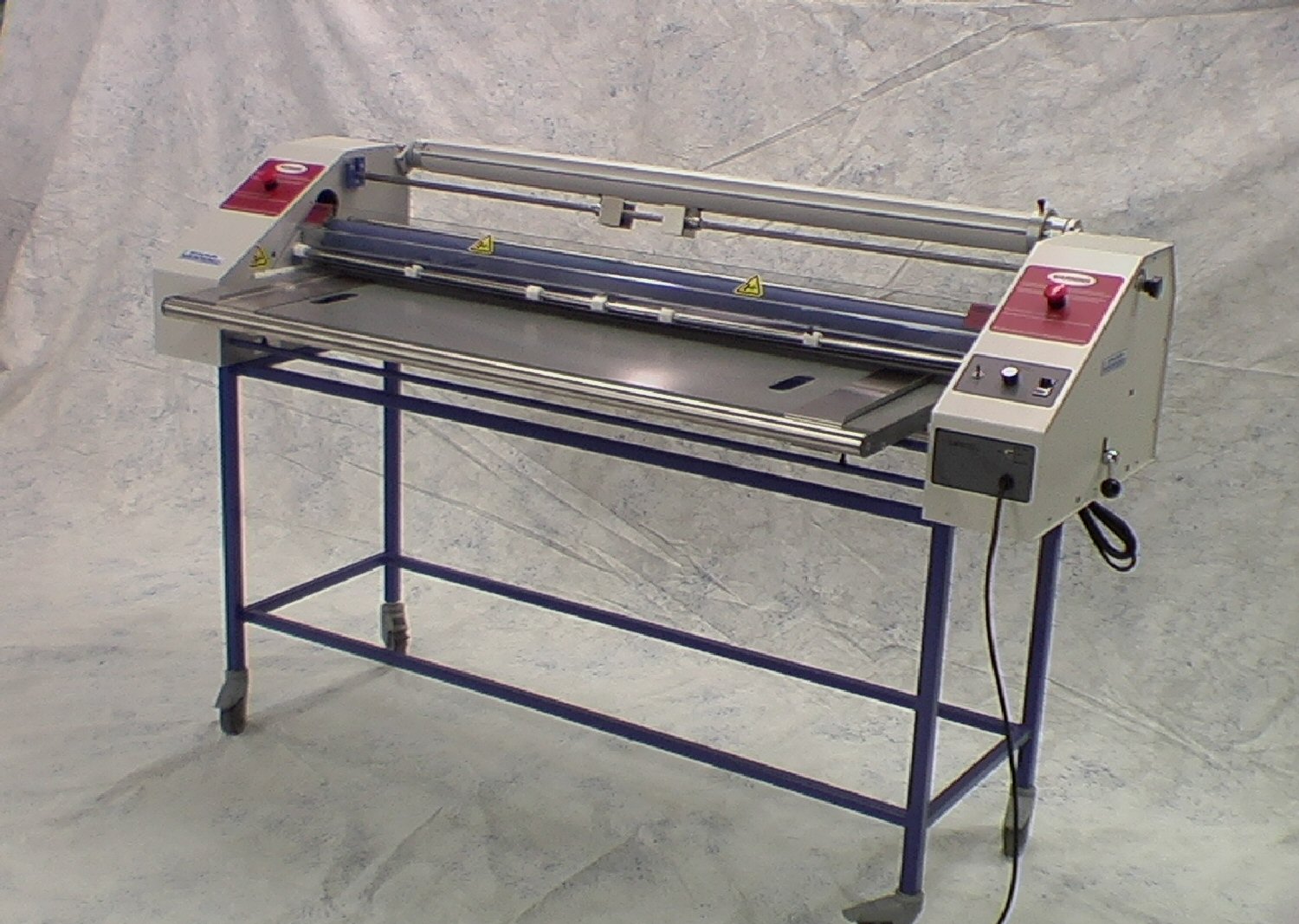

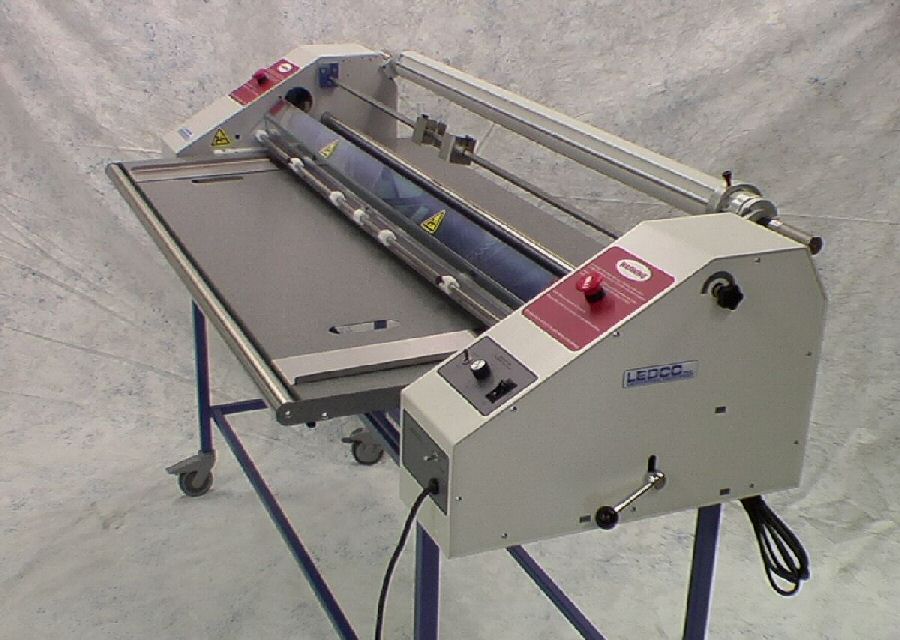

The Econocraft Roll Applicator
Econocraft
60 inch |
|

- Econocraft laminators automate the application of transfer
tape, and other pressure-sensitive adhesive (PSA) tapes or films. They will apply
background vinyl or PSA films to sign blanks.
- They will apply transfer-taped vinyl to any flat sign
material, and will apply clear PSA overlaminate to finished signs or promotional
materials.
- Econocraft applicators can be used to apply any type of
pressure-sensitive film or tape to any substrate up to 1 inch thick (7/16" on the
25" unit). They can be used for mounting.
- Designed for sign and graphics applications, Econocraft
machines are used in many settings, including sign shops, photo-finishing labs,
reprographics shops and manufacturing plants.
|
Back to Top
- Jobs such as applying vinyl to sign blanks or putting
transfer tape on vinyl signage are very labor intensive.
- As the material gets wider and longer, the labor costs
become disproportionately high. Bubbles and wrinkles are introduced, and waste increases.
Some jobs require the additional time and mess of liquid application.
- When signage is ruined during the taping or application
process, the cost of recutting, reweeding, and reapplying will usually take all the profit
out of a job.
- Whether it's transfer tape, vinyl, sandblast or acid resist
tape, premask, adhesive film, clear polyester, or other pressure-sensitive material, an
Econocraft applicator will put it down effortlessly with no bubbles or wrinkles.
|
Back to Top
- Using an Econocraft is much easier than doing the same work
by hand. Fast and versatile, it requires little instruction for you to be up and running.
Supply roll tension is controlled with knobs. The laminating roller gap is adjusted with a
single knob. Econocraft applicators are forgiving. They will apply most materials under a
wide range of speeds and pressure or tension settings.
- The Econocraft 60 is a heavy-duty commercial
laminators designed for the most rigorous and demanding jobs and workloads. The 25 is a
lighter duty model in size and construction. Econocraft features includes:
- A scrap rewind with an adjustable clutch
takes up the release liner found on many pressure sensitive films.
- Roller bearings, alloy construction and
high quality motors insure a long and trouble-free life for these machines.
- The laminating roller opening is
adjustable in seconds and allows operators to work with different thickness materials.
- A variable speed motor control allows
operators to apply different materials to different substrates.
- Interchangeable rubber rollers help keep
maintenance costs down.
- The feed tray is non-ferrous, so magnetic
materials may be applied.
- The supply roll tension knobs are
important, because without some supply roll tension, most films and tapes will wrinkle
during applications.
- A reverse drive switch makes it simple to
back material out of the laminating rollers or correct material wrap-around.
- Manufactured in the U.S.A. means quality,
better service and faster parts availability.
|
Back to Top
| |
30 |
44" |
60" |
| Max. lamination width |
30" |
44" |
60" |
| Variable speed - FPM |
0-25 |
0-25 |
0-25 |
| Laminating roller diameter |
3" |
3." |
3" |
| Supply Roll Core Size |
3" |
| Recommended film thickness |
1 mil and up |
| Max. laminating thickness |
1/2"
|
| Max. film roll diameter |
12" (18"
opt) |
| Dimensions (includes stand) |
51L 46H 30D |
45L 34W 50H |
72L 48H 38D |
| Shipping Dimensions |
56L 51H 43D |
56L 43W 53H |
90L 55H 43D |
| Weight / shipping wt. |
. |
450 / 700 lbs |
850 / 1300 lbs. |
| Electrical |
110V |
| Optional |
220V
|
| |
15 amps |
| Motor |
1/4 HP DC |
|
Econocraft
44 and 60
includes.
A foot pedal is a standard feature that frees hands to align
and feed work.
A stand is included with both of the larger machines.
A safety shield with electronic interlock prevents operation of
the machine if the guard and the feed tray are not in place, protecting
operators and employers.
60" options
Prefeed Slitter attachment: cuts material on the supply roll for application to
narrower substrates, for multiple-up production or for striping.
Bottom supply roll assembly: provides for roll-fed application of
materials, such as transfer tape to weeded vinyl or transfer taped vinyl to banner
material.
Precision feed tray: provides moveable left and right hand guides for
exact feeding of quantities of same-size material.
Econocraft 25 only
A bottom
supply roll assembly, an attached safety
shield,
and a feed tray
with fixed left and right side guides and one moveable guide, are
standard.
25" options
The foot switch
and slitter attachment are optional items
on the 25" model.
Manual
shown here |
| |
25 Inch |
44 inch |
60 inch |
|
110
Volt |
220 Volt
|
| Bottom Supply
Roll |
Included |
$550.00 |
$690.00 |
| Slitter (pre-feed) |
$250.00 |
$460.00 |
$650.00 |
| Stand |
|
Included |
Included |
| Casters |
|
Included |
Included |
| Foot switch |
$130.00 |
Included |
Included |
| Crating |
|
$500.00 |
$500.00 |
| Warranty |
2 years |
2 years |
2 years |
| Factory Replacement
Parts |
Part Number |
| Foot Control 25" |
PRS500 |
| |
|
Speed Control
(30", 50", 60" models) |
PRM 218D |
Foot Control Switch
Power Cord |
PRS 280
PRC 119 |
Econocraft 30"
Laminating Roll 1" Journal |
EP30 040.4
|
Econocraft 50"
Laminating Roll |
EP50 040.4 |
Econocraft 60"
Laminating Roll |
D60 040.4 |

|
Econocraft 25 PREMASK Replacement
Parts
(Prices subject to change without notice) |
| Supply Roll
Assembly |
EP25 002.5 |
| Core Gripper &
Hub Rewind |
E850 2076B |
| Rewind Shaft |
EP25 056.4 |
| Safety Shield |
EP25 074.4 |
| Right Housing
Cover |
EP25 094.4R |
| Left Housing
Cover |
EP 094.41 |
| Feed Table
|
EP25 096.4 |
| Fiber Washer
3/8 id x 3/4 od x /16T |
PRW334 |
| Rubber Roll |
0500-040.4 |
| Supply Roll
Shaft / with Hex |
EP25 011.5 |
| #25 Chain |
PRC083.1
|
| #25 Connecting
Link |
PRC084 |
| Power Cord
Receptacle |
PRC117 |
| Power Cord |
PRC118 |
| Fuse Holder |
PRF126 |
| 3/4 amp fuse |
PFR141 |
| LD Cam Shaft
Knob |
PRK175 |
| LD Supply Roll
Knob |
PRK170 |
| Speed Control
Knob |
PRK180 |
| Speed Control
Board |
PRK219 |
| 18 Tooth
Sprocket w/1/2" bore |
PRS249 |
| 21 Tooth
Sprocket w/5/16" ore |
PRS253A |
| Gear-GH 221/2
bore & set screw |
PRG144 |
| Gear 22
tooth w/bushing |
PRG145 |
| Left Hand Lift
Lever |
EP25 111.5L |
| Right Hand
Lift Lever |
EP25 111.5R |
| Left
Adjustment Rod |
EP25 109.4 |
| Right
Adjustment Rod |
EP25 110.4 |
| Fiber Washer
5/8 x 3/8 / 1/32 |
PRW333 |
| Felt Washer |
PRW331 |
| O ring for
rewind |
PRR2391 |
| Teflon
Friction Washer |
EP25 004.4 |
| Clutch
Pressure Plate |
EP25 007.4 |
| Clutch Shaft |
EP25 014.5 |
| Clutch Pulley |
EP25 043.4 |
| Rewind Pulley |
EP25 044.4 |
| Rewind Driver |
EP25 045.4 |
| Rewind Driver
Housing |
EP25 046.4 |
| Feed Table
Side Guide |
EP25 098.4 |
| Feed Table
Edge Guide |
EP25 099.4 |
| Oilite Bearing
1/2 x 5/8 x 5/8 |
PRB048 |
| Oilite Bearing
1/2 x 5/8 x 5/8 |
PRB049 |
| 25B21 Sprocket
1/2 Bore |
PRS253 |
| Motor |
PRM220 |
